Wszechstronny wzmacniacz audio do niestandardowych instalacji
500 W przy 8 omach
800 watów przy 4 omach
Możliwość montażu w stojaku 2U
wykrywanie sygnału
Power Guard® i Sentry Monitor™
The MI502 2-Channel Digital Amplifier is a flexible component and
welcome addition to a custom installed home audio or home theater
system. It delivers world renowned McIntosh sound quality at a rate of
500 Watts into 8 Ohm speakers or 800 Watts into 4 Ohm speakers. It uses
highly high-tech closed loop digital switching amplifiers and resilient
power supplies that produce performance levels seldom heard in custom
install audio.
The applications are nearly limitless for how to use the versatile MI502 in your home entertainment system. It can be used to power the front left and right speakers in a home theater; to drive two in-wall subwoofers; a pair of MI502s could drive the three front channels of your in-home cinema plus one subwoofer; or to power a pair of outdoor speakers for when the party makes it way outside. Additionally, a stack of multiple MI502s could be used to power the distributed audio speakers installed throughout your home.
The MI502 is rack mountable and has a mounting height of 2U making it easy to install in an equipment rack via the included mounting brackets (the mounting brackets are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature so the only thing you'll hear coming from it is amazing sounding audio that will impress yourself and your guests.

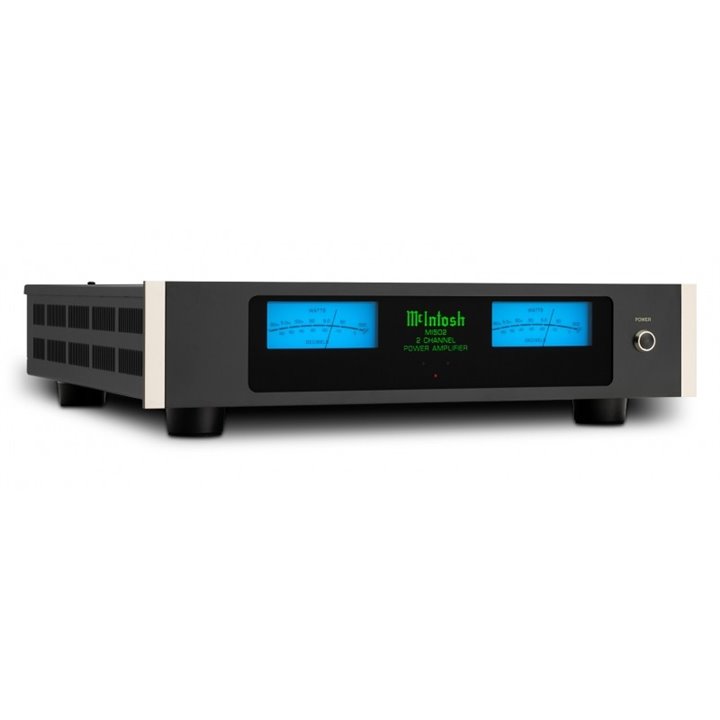

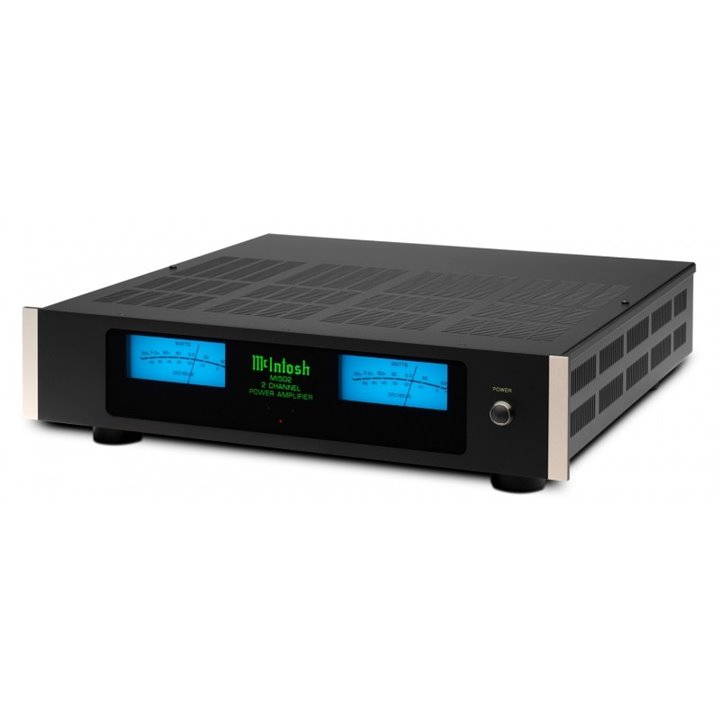

On the front panel are two blue McIntosh Watt Meters
that display the power output of each channel, while multi-color LED

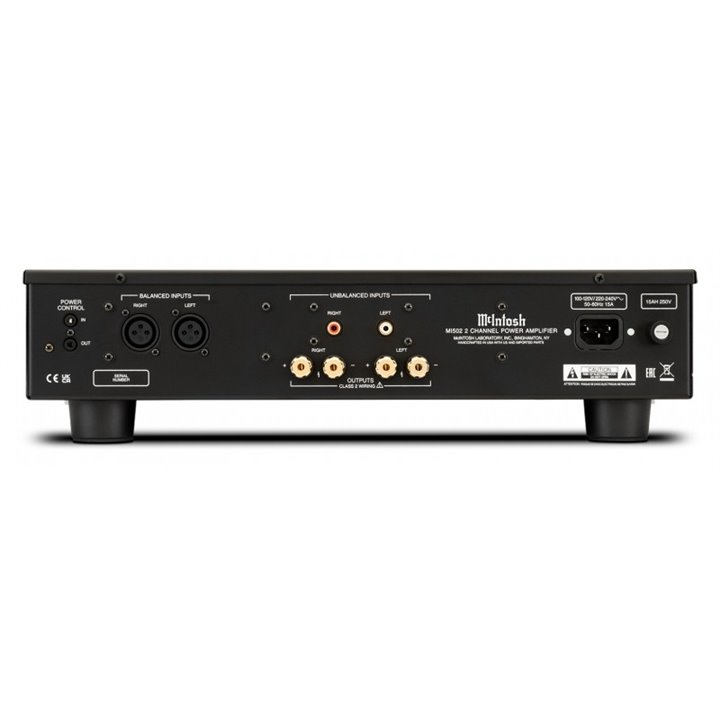

indicators display the status of each channel. The back panel includes a
pair of balanced and unbalanced inputs to connect the MI502 to your preamplifier. A pair of our standard 5-way speaker binding posts are included to connect your speakers.
Other features that come with the MI502 are:
- Power Guard® signal overload technology that prevents overdriving the speakers
- Sentry Monitor™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
- Power Control 12 Volt triggering capabilities
- Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal
The MI502 includes many McIntosh design cues including a
black glass front panel, our coveted blue Watt meters, an illuminated
McIntosh logo, and a familiar form factor highlighted by silver trim
ELECTRONIC SPECIFICATIONS
- Power Output per Channel500 Watts into 8 Ohms
800 Watts into 4 Ohms - Number of Channels2
- Total Harmonic Distortion0.05%
- S/N below rated output98dB
- Dynamic Headroom8 Ohms: 2.7dB
4 Ohms: 3.7dB - Damping Factor8 Ohms: >85
4 Ohms: >45 - Rated Power Band20Hz to 20kHz
- Frequency Response+0, -0.9dB from 20Hz to 20,000Hz
CONTROL
- Remote Power ControlYes
- Multi-Channel DB25 CableN/A
CONNECTIVITY
- Speaker Binding Post TypeStandard
GENERAL SPECIFICATIONS
- Circuit ConfigurationClosed loop digital switching
- Circuit DesignDigital
- Mono BridgeN/A
- Mono ParallelN/A
- Output TypeDirect Coupled
- MetersYes
- Meter Light SwitchNo
- Balanced Input1
- Front PanelGlass with removable rack mounting ears
- IlluminationDirect LED
- Chassis StyleBlack painted steel
WEIGHTS & DIMENSIONS
- Unit Dimensions (W x H x D)17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
- Unit Weight9.8 kg
- Shipping Weight17.2 kg
