Podstawowe cechy:
Specyfikacja techniczna:

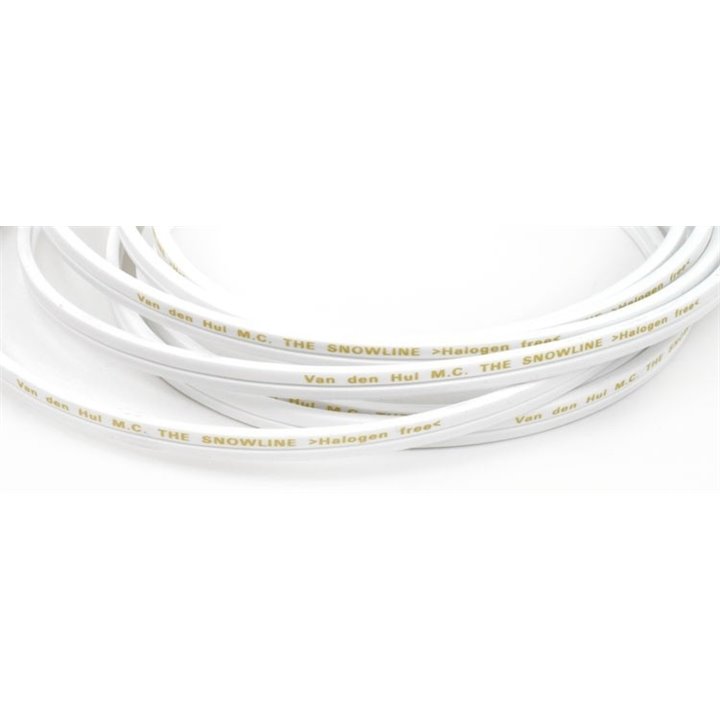

| Cable Type: | Twin conductor |
| Conductor Material: | High purity dense Silver coated high purity OFC |
| Design Purpose/ Application Area(s): |
Loudspeaker cable / Car and general hi-fi application |
| Eff. Conductor Ø/Eq. AWG No./Strands: | 2 x (1.97 mm² / ~AWG 14 / 98) |
| External Diameter / -Dimensions: |
8.5 mm. wide; 3.4 mm. thick |
| Resistance 20 °C / 68 °F: | 0.88 Ohm/100 m. |
| Capacitance: | 69 pF/m. |
| Insulation / Dielectric Strength / Test Voltage: | Jacket: HULLIFLEX ® 3 / 300 Vrms min. |
| Connector Types Suitable: | Our 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 4.5 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on ordered lengths |
| Jacket Colours Available: | White |
| Remarks: | Our The SNOWTRACK is a quadruple lead / bi-wiring version of this cable. Our CS - 14 is a single lead version of this cable. Other twin-lead speaker cables in our AWG 14 range are: The CLEARLINE, The SKYLINE HYBRID, The BRIDGE, The CLEARWATER and The GOLDWATER. |
